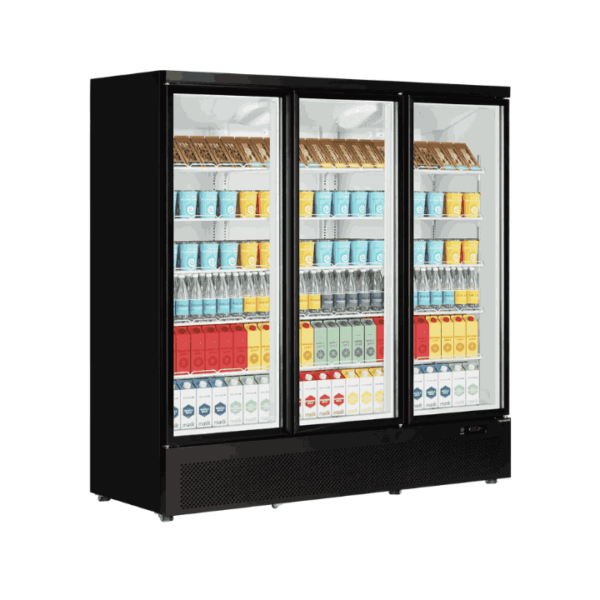

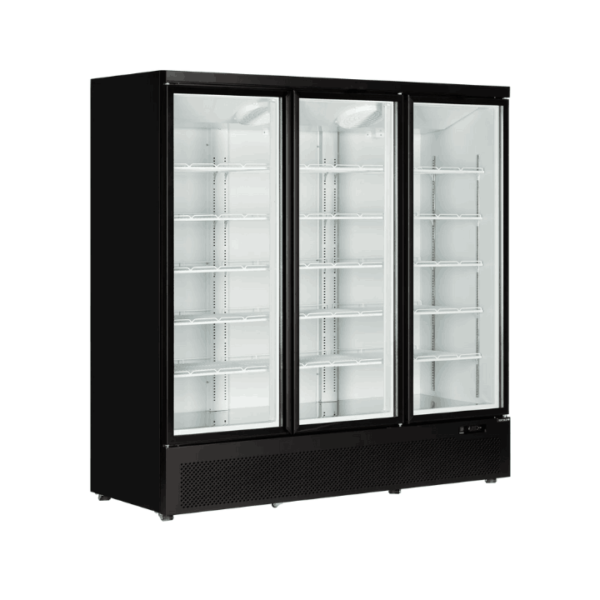

Atom Maxi C3DB

Atom Maxi C3DB

  • Low energy consumption

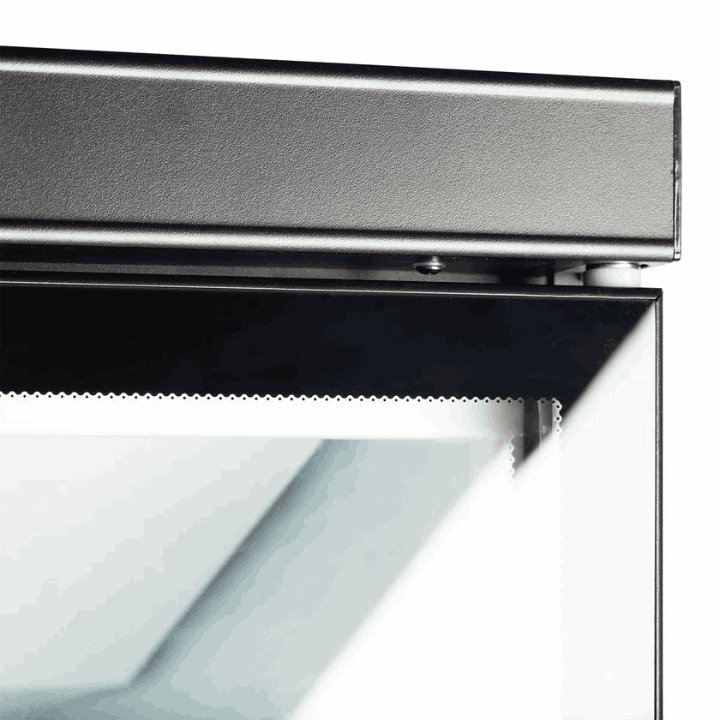

  • Hinged glass doors
  • Self-closing doors
  • Double glazed doors

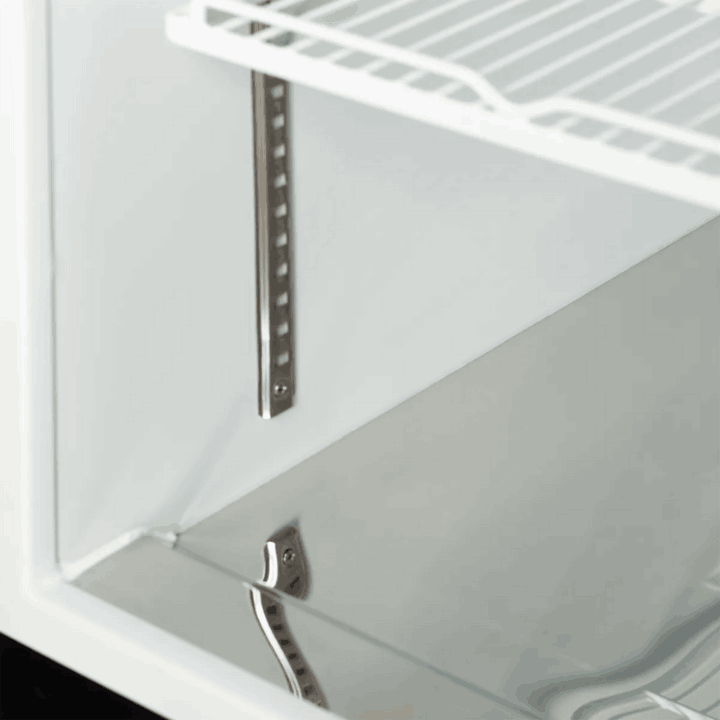

  • Adjustable shelves
  • Vertical LED interior light with switch
  • Ventilated cooling
  • Digital controller and temperature display
  • Castors
  • Freezer Option Available

Description

The Atom Maxi range of glass door chillers is available in 2 or 3 door options. Edge to edge “frameless” self closing glass doors together with excellent storage capacity make it ideal for all types of chilled food and drink displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a chilled food and drink selection enables extra choice. A white interior with vertical LED lighting helps present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce chilled produce to your customers. There is also a matching freezer option available.

Technical Specifications

Measures and Content

  • Temperature Range
    -1 to +10 °C
  • Climate Class
    3
  • Gross / Net Weight
    235 / 207.5 kg
  • Gross / Net Volume
    1664 / 1264 l
  • Cans 330 ml
    1750 pcs
  • Cans 500 ml
    1050 pcs
  • Bottles 330 ml
    980 pcs
  • Bottles 500 ml PET
    875 pcs
  • Total Display Area
    2.38 m²

Design and Material

  • Castors
    6 castors
  • Exterior Finish
    Black RAL9005
  • Interior Finish
    White
  • Interior Light
    LED
  • Door Number & Type
    3 hinged glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    15 adjustable
  • Shelf Color
    White
  • Shelf Dimensions
    566 x 480 mm ; 624 x 480 mm
  • Max load on Shelves
    135 kg/m²

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic-Off Cycle
  • Refrigerant
    R290
  • Refrigerant Charge
    130 g
  • Thermometer

Power and Consumption

  • Energy Class
    B
  • Energy Consumption
    5.41 kWh/24h
  • Annual Energy Consumption
    1975 kWh/year
  • Input Power
    700 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    65 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    1790 x 595 x 1568 mm
  • External Dimension (WxDxH)
    1880 x 710 x 2003 mm
  • Packed Dimension (WxDxH)
    1905 x 760 x 2090 mm
  • 40ft Container Load
    18 pcs
  • GTIN / EAN
    5708181733117
  • Product Group – Delivery services
    Group 4
