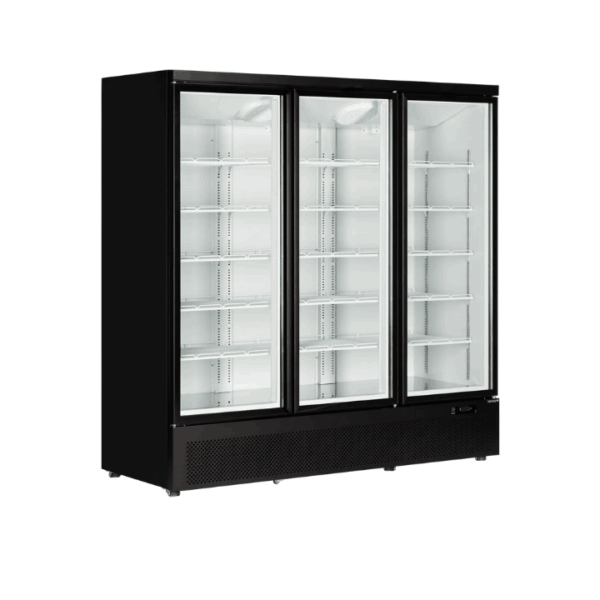

Atom Maxi F3DB

Atom Maxi F3DB

  • Perfect display for frozen foods
  • Low energy consumption
  • Hinged glass doors
  • Heated glass to help prevent condensation
  • Triple glazed insulated glass
  • Self-closing doors

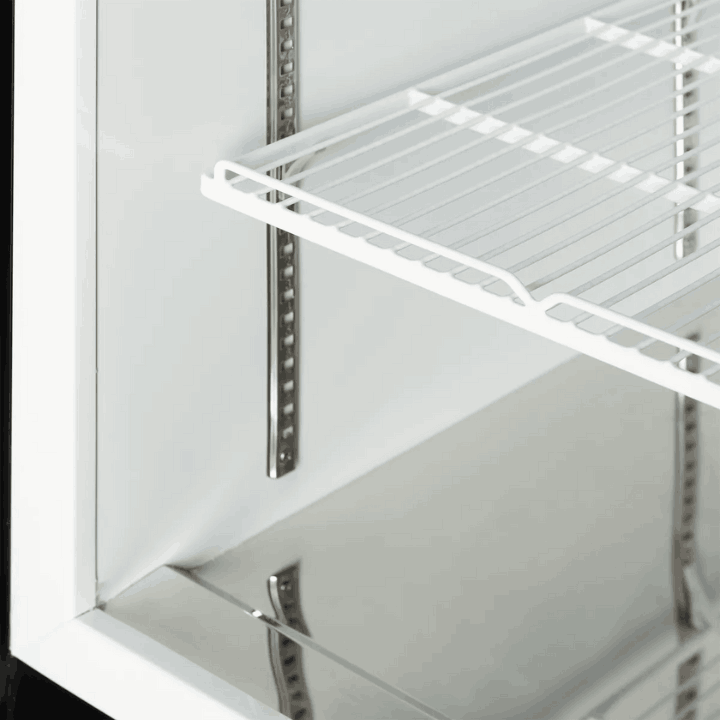

  • Adjustable shelves
  • Vertical LED interior light with switch

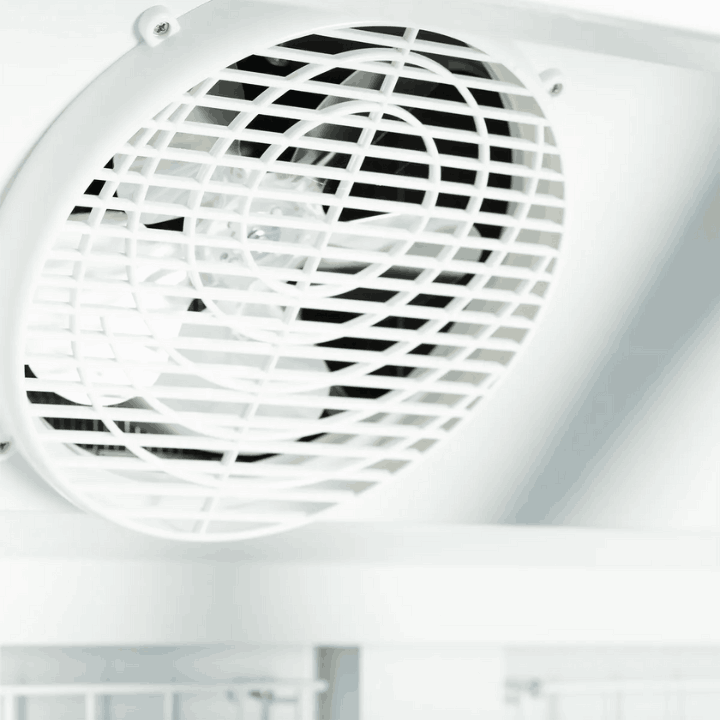

  • Ventilated cooling

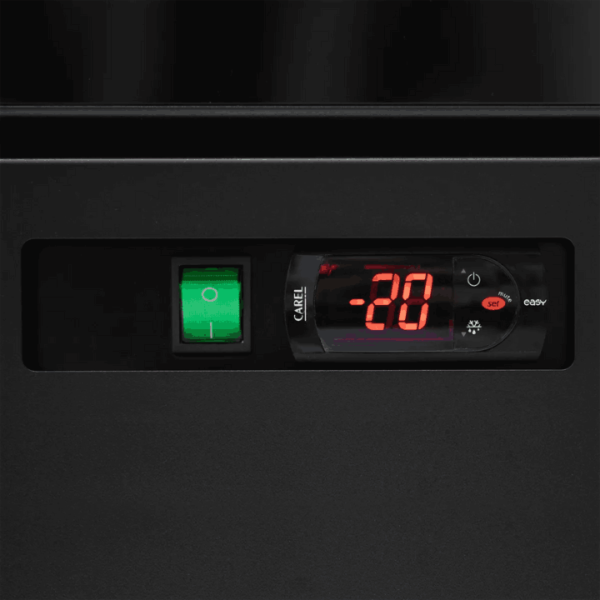

  • Digital controller and temperature display
  • Castors
  • Chiller Option Available

Description

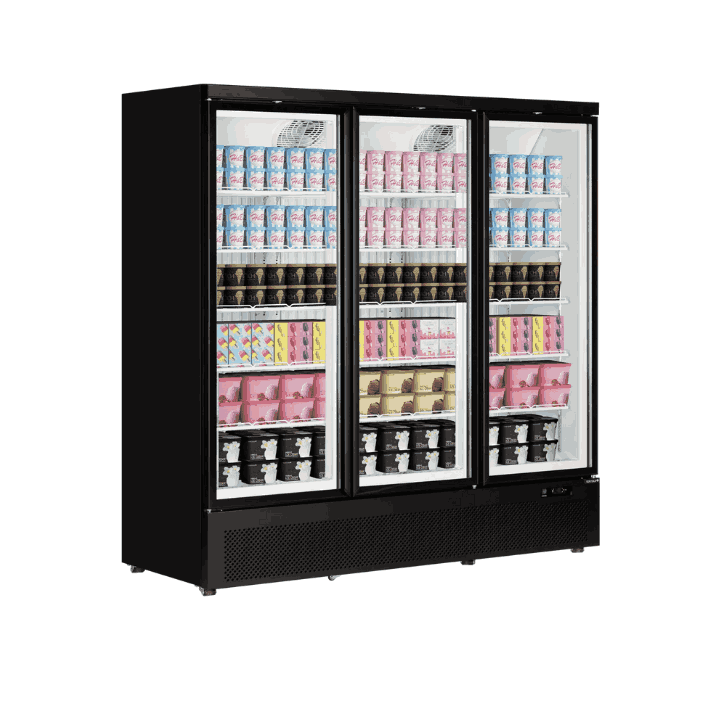

The Atom Maxi range of glass door freezers is available in 2 or 3 door options. Edge to edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters for use in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice-up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.

Technical specifications

Measures and Content

  • Temperature Range
    -18 to -22 °C
  • Climate Class
    3
  • Gross / Net Weight
    355 / 305 kg
  • Gross / Net Volume
    1563 / 1090 l
  • Total Display Area
    2.09 m²

Design and Material

  • Castors
    6 castors
  • Exterior Finish
    Black RAL9005
  • Interior Finish
    White
  • Interior Light
    LED
  • Door Number & Type
    3 hinged glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    15 adjustable
  • Shelf Color
    White
  • Shelf Dimensions
    551 x 470 mm ; 624 x 470 mm
  • Max load on Shelves
    140 kg/m²

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    2 x 95 g
  • Thermometer

Power and Consumption

  • Energy Class
    D
  • Energy Consumption
    23.84 kWh/24h
  • Annual Energy Consumption
    8702 kWh/year
  • Input Power
    1280 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    70 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    1760 x 580 x 1538 mm
  • External Dimension (WxDxH)
    1880 x 760 x 2003 mm
  • Packed Dimension (WxDxH)
    1905 x 780 x 2090 mm
  • 40ft Container Load
    18 pcs
  • GTIN / EAN
    5708181733094
  • Product Group – Delivery services
    Group 4
